Detail overview

Main Specifications:

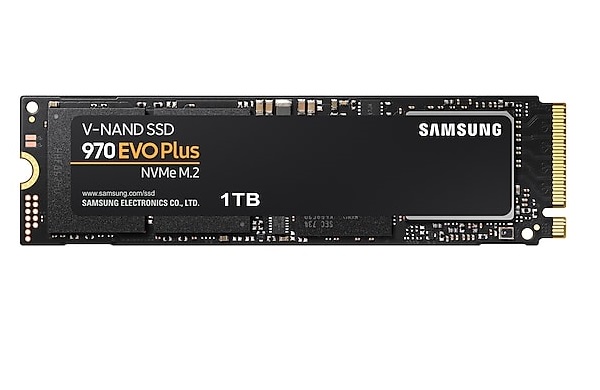

  • Product Description : Samsung 970 Evo Plus Mz-v7s1t0b - Solid State Drive - 1 Tb - Pci Express 3.0 X4 (nvme)
  • Type : Solid State Drive - Internal
  • Capacity : 1 Tb
  • Hardware Encryption : Yes
  • Encryption Algorithm : 256-bit Aes
  • Nand Flash Memory Type : Multi-level Cell (mlc)
  • Form Factor : M.2 2280
  • Interface : Pci Express 3.0 X4 (nvme)
  • Buffer Size : 1 Gb
  • Features : Trim Support, Sleep Mode, Auto Garbage Collection Algorithm, V-nand Technology, Nvm Express (nvme) 1.3, Samsung Phoenix Controller, S.m.a.r.t.
  • Dimensions (wxdxh) : 0.9 In X 3.2 In X 0.1 In
  • Width : 0.9 In
  • Depth : 3.2 In
  • Height : 0.1 In
  • Weight : 0.28 Oz

    Performance:
  • Ssd Endurance : 600 Tb
  • Internal Data Rate : 3500 Mbps (read) / 3300 Mbps (write)
  • Maximum 4kb Random Read : 19000 Iops
  • Maximum 4kb Random Write : 600,000 Iops
  • Maximum 4kb Random Write : 550000 Iops
  • Maximum 4kb Random Read : 600000 Iops

    Reliability:
  • Mtbf : 1,500,000 Hours

    Expansion & Connectivity:
  • Interfaces : Pci Express 3.0 X4 (nvme) - M.2 Card
  • Compatible Bay : M.2 2280

    Environmental Parameters :
  • Min Operating Temperature : 32 °f
  • Max Operating Temperature : 158 °f
  • Shock Tolerance (operating) : 1500 G @ 0.5 Ms Half-sine

    Condition : Brand New.
    Availability : In Stock.
    Mfg Warranty : None.
    Our Warranty : 30 Days.
