Detail overview

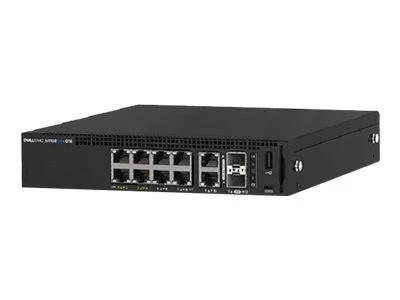

N1108ep-on Emc Networking N1108ep-on - Switch - 8 Ports - Managed - Rack-mountable

Key Features :

  • Device Type : Switch - 8 Ports - Managed - Stackable
  • Enclosure Type : Front To Back Airflow Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 8 X 10/100/1000 (poe+) + 2 X Gigabit Sfp + 2 X 1000base-t
  • Power Over Ethernet (poe) : Poe+
  • Poe Budget : 137 W
  • Performance : Switching Fabric Bandwidth: 24 Gbps ¦ Forwarding Performance: 18 Mpps
  • Capacity : Mac Addresses: 16000 ¦ Aggregated Links (dynamic): 144 ¦ Lag Groups: 64 ¦ Queues Per Port: 8 ¦ Vlans Supported: 512 ¦ Arp Entries: 2048 ¦ Ndp Entries: 400 ¦ Max Acl Rules System-wide: 4000 ¦ Acl: 100 ¦ Maximum Acl Rules Per Interface (ipv4) Ingress Rules: 1023 ¦ Maximum Acl Rules Per Interface (ipv4) Egress Rules: 1023 ¦ Maximum Acl Rules Per Interface (ipv6) Ingress Rules: 1021 ¦ Maximum Acl Rules Per Interface (ipv6) Egress Rules: 253
  • Mac Address Table Size : 16000 Entries
  • Routing Protocol : Igmpv2, Igmp, Igmpv3
  • Remote Management Protocol : Snmp 2, Snmp, Rmon, Telnet, Http, Tftp, Ssh-2
  • Encryption Algorithm : Aes, Ssl, Tls 1.0
  • Authentication Method : Radius, Tacacs+, Ldap
  • Features : Layer 2 Switching, Mdi/mdi-x Switch, Auto-negotiation, Port Mirroring, Store And Forward, Ip Address Filtering, Access Control List (acl) Support, Quality Of Service (qos), Fanless, Lldp Support, Remote Switch Port Analyzer (rspan), Management Information Base (mib), Dual Firmware Images, Mac And Ip-based Acls Support, Time-controlled Acls Support
  • Compliant Standards : Ieee 802.2, Ieee 802.3, Ieee 802.3u, Ieee 802.3z, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.3ae, Ieee 802.3ac, Ieee 802.1s, Ieee 802.1v, Ansi/tia-1057, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.3ax
  • Ram : 1 Gb
  • Flash Memory : 1 Gb

    Expansion / Connectivity :
  • Interfaces : 2 X Gigabit Lan Rj-45 ¦ 8 X 10/100/1000 Base-t Rj-45 Poe+ ¦ 2 X Gigabit Lan Sfp ¦ 1 X Usb Type A ¦ 1 X

    Power :
  • Power Device : External Power Adapter
  • Power Consumption Operational : 19.51 Watt

    Condition : Brand New.
    Availability : In Stock.
    Our Warranty : 30 Days.
