Detail overview

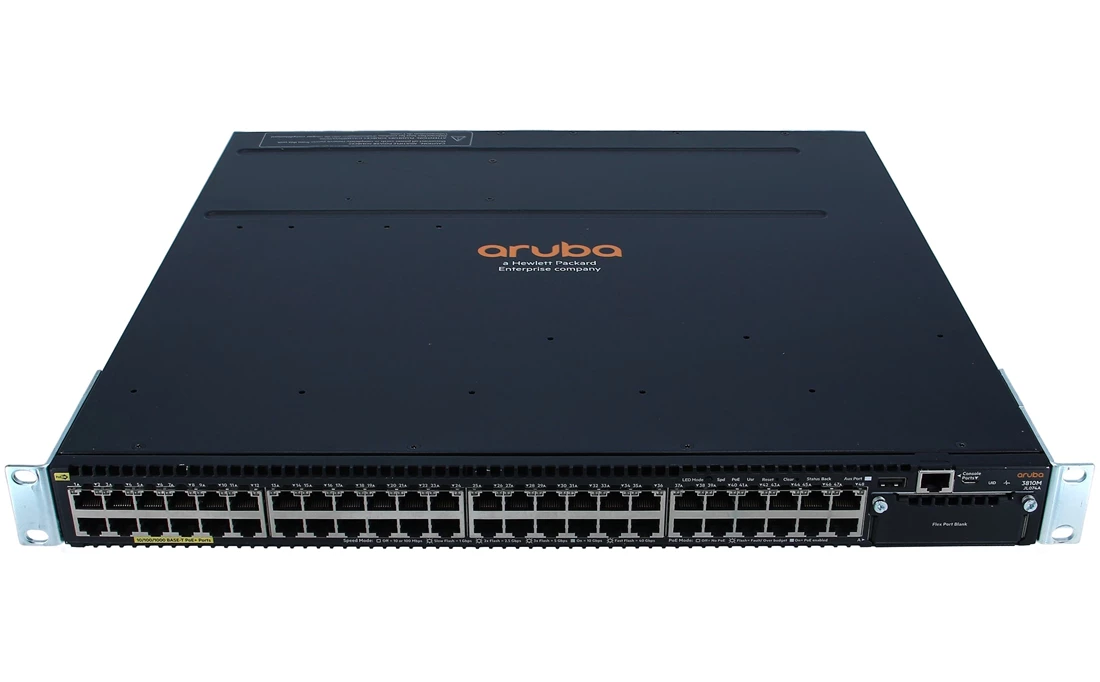

Hpe Jl074a Aruba 3810m 48g Poe+ 1-slot Switch - Switch - 48 Ports - Managed - Rack-mountable :

Key Features :

  • Device Type : Switch - 48 Ports - L3 - Managed - Stackable
  • Enclosure Type : Rack-mountable - 1u
  • Subtype : Gigabit Ethernet
  • Ports : 48 X 10/100/1000 (poe+)
  • Power Over Ethernet (poe) : Poe+
  • Performance : Latency (1000base-t) : 2.8 Μs ¦ Latency (10 Gbps) : 1.8 Μs ¦ Latency (40 Gbps) : 1.5 Μs ¦ Throughput (64-byte Packet Size) : Up To 190.5 Mpps ¦ Routing/switching Capacity : 320 Gbps ¦ Switching Fabric Bandwidth : 338 Gbps
    capacity : Ipv4 Routing Table Entries : 10000 ¦ Ipv6 Routing Table Entries : 5000
  • Mac Address Table Size : 64k Entries
  • Jumbo Frame Support : Yes
  • Routing Protocol : Ospf, Rip, Rip-1, Rip-2, Bgp, Vrrp, Ospfv2, Ospfv3, Static Ipv4 Routing, Static Ipv6 Routing, Ripng, Mld, Bidirectional Forwarding Detection (bfd)
  • Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Rmon, Telnet, Snmp 3, Snmp 2c, Http, Ssh, Ssh-2, Cli, Xrmon
  • Encryption Algorithm : Ssl
  • Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2)
  • Features : Arp Support, Spanning Tree Protocol (stp) Support, Per-vlan Spanning Tree (pvst), Access Control List (acl) Support, Quality Of Service (qos), Device Link Detection Protocol (dldp) Support, Uni-directional Link Detection (udld), Management Information Base (mib), Dynamic Vlan Support (gvrp), Multiple Vlan Registration Protocol (mvrp), Class Of Service (cos), Sflow V5, Type Of Service (tos), Openflow Support, Internet Control Message Protocol (icmp)
  • Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3ad (lacp), Ieee 802.1x, Ieee 802.1s, Ieee 802.1v, Ieee 802.11n, Ieee 802.1ab (lldp), Ieee 802.3at
    processor : 2
  • Ram : 6 Gb - Ddr3 Sdram
  • Flash Memory : 1 Gb

    Expansion / Connectivity :
    Interfaces :
  • 48 X 1000base-t - Rj-45 - Poe+
  • 1 X Serial (console) - Rj-45 - Management
  • 1 X Management - Rj-45
  • 1 X - Rj-45
  • 1 X Micro-usb - Type B

    Expansion Slots :
  • 1 (total) / 1 (free) X Expansion Slot
  • 1 (total) / 1 (free) X Stacking Module Slot

    Power :
  • Power Device : Internal Power Supply
  • Installed Qty : 0 (installed) / 2 (max)
  • 80 Plus Certification : 80 Plus Silver
  • Energy Star Certified : Yes

    Condition : New Sealed Spares
    Availability : In Stock
    Our Warranty : 30 Days
