Detail overview

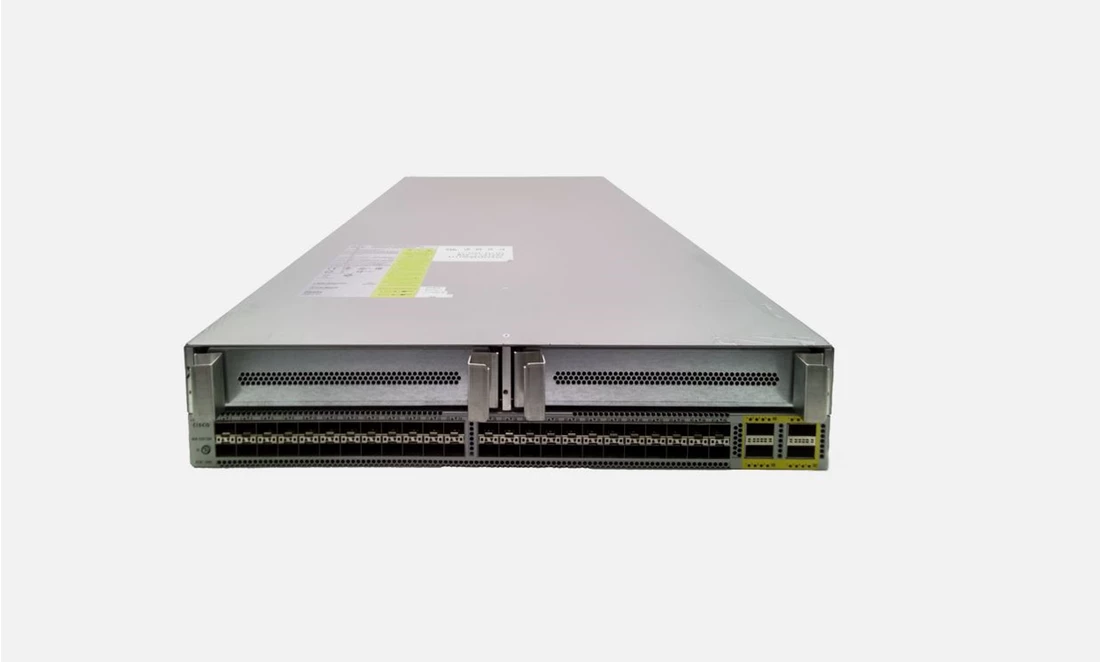

cisco - Nexus 56128p Managed L3 Switch - 48 1/10 Gigabit Sfp+ Ports & 4 40gb Ethernet/fcoe Qsfp+ Breakout Compatible Ports (n5k-c56128p).

key Features :

  • Device Type : Switch - 48 Ports - L3 - Managed
  • Enclosure Type : Rack-mountable 2u
  • Subtype : 10 Gigabit Ethernet
  • Ports : 48 X 1 Gigabit / 10 Gigabit Sfp+ + 4 X 40gb Ethernet / Fcoe Qsfp+ (breakout Compatible)
  • Performance : Forwarding Performance : 2.56 Tbps
  • Capacity : Arp Entries : 256000 ¦ Virtual Interfaces (vlans) : 4096 ¦ Acl Entries : 4000 ¦ Multiple Spanning Tree Protocol Instances : 64 ¦ Host Table Entries (ipv4) : 32000 ¦ Host Table Entries (ipv6) : 8000 ¦ Multicast Entries (ipv4) : 8000 ¦ Igmp Snooping Entries : 8000 ¦ Virtual Routing And Forwarding (vrf) Entries : 4000 ¦ Equal-cost Multipathing (ecmp) Ways : 64
  • Mac Address Table Size : 256k Entries
  • Jumbo Frame Support : 9216 Bytes
  • Routing Protocol : Is-is, Rip-2, Bgp, Eigrp, Hsrp, Igmp, Vrrp, Ospfv2, Pim-sm, Eigrp For Ipv6, Ospf For Ipv6, Static Ipv4 Routing, Static Ipv6 Routing, Ecmp, Policy-based Routing (pbr), Bidirectional Forwarding Detection (bfd), Bgp For Ipv6
  • Remote Management Protocol : Snmp 1, Snmp 2, Rmon, Telnet, Snmp 3, Ssh-2, Cli
  • Features : Dhcp Support, Vpn Support, Arp Support, Vlan Support, Syslog Support, Weighted Round Robin (wrr) Queuing, Broadcast Storm Control, Ipv6 Support, Multicast Storm Control, Unicast Storm Control, Multiple Spanning Tree Protocol (mstp) Support, Data Center Bridging Exchange (dcbx) Support, Access Control List (acl) Support, Quality Of Service (qos), Jumbo Frames Support, Dynamic Arp Inspection (dai), Equal-cost Multipath (ecmp), Bidirectional Forwarding Detection (bfd), Stp Root Guard, Unicast Reverse Path Forwarding (urpf), Link Aggregation Control Protocol (lacp), Per-vlan Rapid Spanning Tree (pvrst), Hot Standby Router Protocol (hsrp) Support, Management Information Base (mib), Multicast Vlan Registration (mvr), Virtual Routing And Forwarding (vrf), Redundant Hot Swappable Fans, Transparent (n_port Id Virtualization - Npiv) Mode Support, Registered State Change Notification (rscn) Support, Call Home Function Support, Fcoe Forwarding, Stp Portfast, Class Of Service (cos), Multicast Source Discovery Protocol (msdp), Virtual Portchannel (vpc) Technology
  • Compliant Standards : Ieee 802.3, Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.3ae, Ieee 802.1s, Ieee 802.1qbb, Ieee 802.1qaz, Fip V1
  • Power : Ac 120/230 V ( 50/60 Hz )

    condition : New Factory Sealed.
    availability : In Stock.
    our Warranty : 30 Days.
