Detail overview

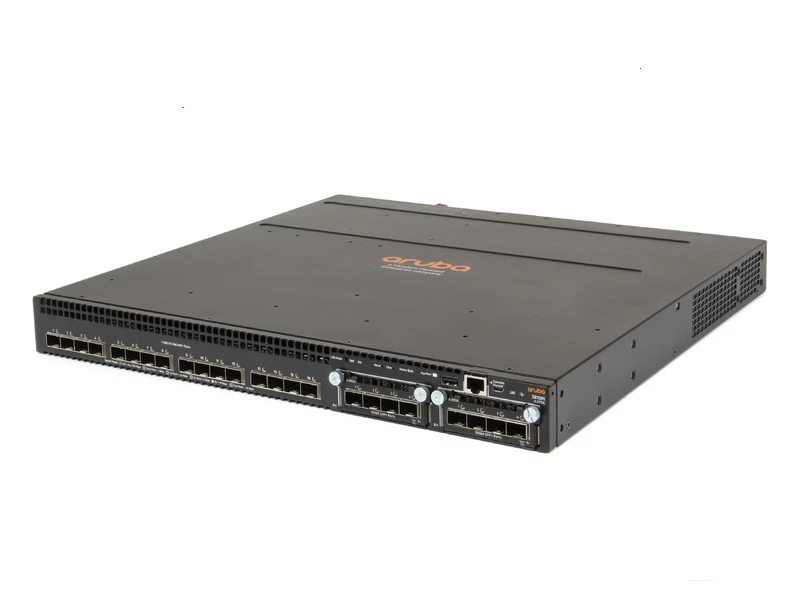

Hpe Jl430a Aruba 3810m 24sfp+ 250w - Switch - 24 Ports - Managed - Rack-mountable.

Key Features :

  • Device Type : Switch - 24 Ports - Managed
  • Enclosure Type : Rack-mountable 1u
  • Subtype : Gigabit Ethernet
  • Ports : 24 X 10/100/1000
  • Performance : Routing/switching Capacity: 160 Gbps Switching Fabric Bandwidth: 169 Gbps Latency (1 Gbps): 2.8 Μs Latency (10 Gbps): 1.8 Μs Throughput (64-byte Packet Size): 95.2 Mpps
  • Capacity : Routing Tables: 10000
  • Mac Address Table Size : 64k Entries
  • Routing Protocol : Ospf, Bgp-4, Rip-1, Rip-2, Bgp, Ospfv2, Ospfv3
  • Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Snmp 3, Snmp 2c, Ssh-2, Xrmon
  • Encryption Algorithm : Ssl
  • Authentication Method : Radius, Tacacs+
  • Features : Flow Control, Full Duplex Capability, Dhcp Support, Bootp Support, Vlan Support, Syslog Support, Diffserv Support, Sflow, Multiple Spanning Tree Protocol (mstp) Support, Quality Of Service (qos), Jumbo Frames Support, Lldp Support, Link Aggregation Control Protocol (lacp)
  • Compliant Standards : Ieee 802.1d, Ieee 802.1q, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1s, Ieee 802.1ad, Ieee 802.1v, Ieee 802.1ax

    Expansion / Connectivity :
    Interfaces :
  • 24 X 1000base-t - Rj-45
  • 1 X Network Stack Device
  • 1 X Console - Rj-45
  • 1 X Management (lan) - Rj-45
  • 1 X Micro-usb
    Expansion Slots :
  • 1 (total) / 1 (free) X Expansion Slot

    Power :
  • Power Device : Internal Power Supply - Hot-plug
  • Installed Qty : 1 (installed) / 2 (max)
  • Power Redundancy : Yes
  • Power Redundancy Scheme : 1+1 (with Optional Power Supply)
  • Power Provided : 250 Watt
  • Voltage Required : Dc 12 V

    Condition : New Retail Factory Sealed
    Availability : In Stock
    Manufacturer Warranty : Limited Lifetime
    Our Warranty : 30 Days
