1 Product(s) Found

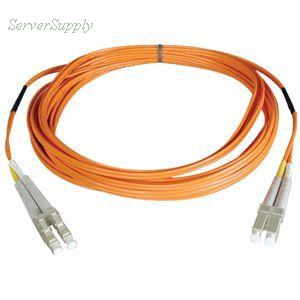

N520-20M TRIPP-LITE CABLES FIBER OPTIC CABLE LC-LC

- Item Image -

N520-20M - TRIPP LITE - 20M FIBER OPTIC PATCH CABLE LC TO LC 50/ 125 MICRON DUPLEX MMF (N520-20M). NEW. IN STOCK.
Original Item Select Quantity Cost
N520-20M $75.00
TRIPP LITE - 20M FIBER OPTIC PATCH CABLE LC TO LC 50/ 125 MICRON DUPLEX MMF (N520-20M) :

GENERAL INFORMATION :

MANUFACTURER PART NUMBER : N520-20M
MANUFACTURER : TRIPP LITE
PRODUCT NAME : FIBER OPTIC PATCH CABLE
PRODUCT TYPE : NETWORK CABLE
AVAILABILITY : IN STOCK
CONDITION : NEW

TECHNICAL INFORMATION :

  • CABLE TYPE : FIBER OPTIC
  • CABLE CHARACTERISTIC : PATCH CABLE
  • CORE/CLADDING DIAMETER : 50/125 µM
  • CABLE LENGTH : 65.62FT
  • CONNECTOR ON FIRST END : 2 X LC MALE
  • CONNECTOR ON SECOND END : 2 X LC MALE
  • JACKET : PVC

    ADDITIONAL INFORMATION :

  • USE ON FIBER AND FIBRE CHANNEL INSTALLATIONS
  • HIGHER BANDWIDTH OPTIMIZED FOR GIGABIT AND 10GBPS NETWORKS
  • FIBER TYPE : ALL GLASS GRADED INDEX
  • CORE DIAMETER : TWO 50+/-3 MICRONS
  • CLAD DIAMETER : 125+/-2 MICRONS
  • PRIMARY COATING DIAMETER : 245+/-15 MICRONS
  • PRIMARY COATING MATERIAL : ACRYLATE
  • SECONDARY COATING DIAMETER : 900+/-50 MICRONS
  • ATTENUATION @850NM : 3.5DB/KM MAXIMUM, @1300NM: 1.0DB/KM MAXIMUM
  • BANDWIDTH @850NM : 220 MHZ-KM MINIMUM, @1300NM: 600 MHZ-KM MINIMUM
  • PROOF TEST LEVEL : 100,000 PSI
  • INSERTION LOSS TESTING PERFORMED ON EVERY CONNECTOR (0.2DB TYPICAL) AND PROVIDED WITH CABLE
  • BEVELED EDGE ON ENDS OF GLASS MAKES INSERTION OF PLUG A BREEZE

    SYSTEM REQUIREMENTS :

  • ANY FIBER OPTIC HARDWARE OR NIC CARD REQUIRING MULTIMODE DUPLEX CABLE WITH LC/LC CONNECTORS.
    		•
