1 Product(s) Found

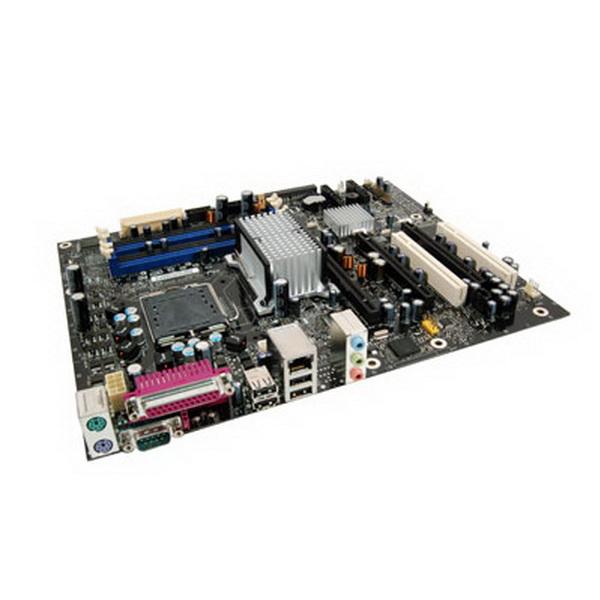

LAD975XBXLKR INTEL MOTHERBOARD DESKTOP BOARD SOCKET 775

- Item Image -

LAD975XBXLKR - INTEL - D975XBXLKR ATX MOTHERBOARD SOCKET 775 1066FSB DDR2 WB (LAD975XBXLKR). REFURBISHED. IN STOCK.
Original Item Select Quantity Cost
LAD975XBXLKR $285.00
DESCRIPTION:D975XBXLKR ATX MOTHERBOARD SOCKET 775 1066FSB DDR2 WB.
PRODUCT:#LAD975XBXLKR
MFG:INTEL
CONDITION:REFURBISHED.
AVAILABILITY:IN STOCK.
OUR WARRANTY: 30 DAYS.

KEY FEATURES

PROCESSOR CLASS :
INTELŪ PENTIUMŪ PROCESSOR EXTREME EDITION (IN AN LGA775 SOCKET WITH A 1066 OR 800 MHZ SYSTEM BUS)
INTELŪ PENTIUMŪ 4 PROCESSOR EXTREME EDITION SUPPORTING HYPER-THREADING TECHNOLOGY (IN AN LGA775 SOCKET WITH A 1066 MHZ SYSTEM BUS)
INTELŪ PENTIUMŪ D PROCESSOR (IN AN LGA775 SOCKET WITH A 800 MHZ SYSTEM BUS)
INTELŪ PENTIUMŪ 4 PROCESSOR SUPPORTING HYPER-THREADING TECHNOLOGY (IN AN LGA775 SOCKET WITH A 800 MHZ SYSTEM BUS)

NUMBER OF PROCESSORS SUPPORTED : 1

CHIPSET USED : INTELŪ 975X

FRONT SIDE BUS SUPPORTED : 1066/800 MHZ

MEMORY TYPES SUPPORTED : 8 GB (MAX) DDR2 667 MHZ AND DDR2 533 MHZ DIMMS

NUMBER OF MEMORY SLOTS : 4 (240-PIN)

VIDEO INTEGRATED : ATI CROSSFIRE MULTI-GPU TECHNOLOGY ENABLES TWO ATI GRAPHICS CARDS TO WORK TOGETHER FOR ULTIMATE 3D GAMING PERFORMANCE AND VISUAL QUALITY (VIA PCI EXPRESS X16 AND X8)

AUDIO INTEGRATED : INTELŪ HIGH DEFINITION AUDIO SIGMATEL STAC9220

NETWORK CONTROLLER ON-BOARD : GIGABIT (10/100/1000 MBITS/SEC) LAN SUBSYSTEM USING THE INTELŪ 82573E/82573L GIGABIT ETHERNET CONTROLLER

ONBOARD DEVICE : 1 SERIAL AND 1 PARALLEL PORT

IDE MODE SUPPORTED :
4 SERIAL ATA INTERFACES WITH RAID SUPPORT
1 PARALLEL ATA IDE INTERFACE WITH UDMA 33, ATA-66/100 SUPPORT

SCSI CONTROLLER ON-BOARD : NONE

AGP SLOT : NONE

SLOTS AVAILABLE : 2 PCI CONVENTIONAL, 1 PRIMARY PCI EXPRESS X16 (ELECTRICAL X16 OR X8), 1 SECONDARY PCI EXPRESS X16 (ELECTRICAL X8), 1 PCI EXPRESS X16 (ELECTRICAL X4)

NUMBER OF USB PORTS : 4 BACK, 4 FRONT USB 2.0

FORM FACTOR : ATX, 12 X 9.6 INCHES

OTHER FEATURES :
TPM
INTELŪ MATRIX STORAGE TECHNOLOGY (RAID)
HYPER-THREADING TECHNOLOGY SUPPORT
INTELŪ PRECISION COOLING TECHNOLOGY
INSTANTLY AVAILABLE PC

PACKAGE TYPE : WHITE BOX

PACKAGE INCLUDES :
DESKTOP BOARD
FLOPPY, ATA AND SERIAL ATA CABLES
EXPRESS INSTALLER CD
SERIAL ATA ICH5 RAID DRIVER DISKETTE
I/O SHIELD

ADDITIONAL INFO:THE INTELŪ DESKTOP BOARD D975XBX IS DESIGNED TO DELIVER THE BEST EXPERIENCE FOR ADVANCED GAMERS AND POWER-USERS. BASED ON THE INTELŪ 975X EXPRESS CHIPSET AND INTELŪ PENTIUMŪ PROCESSOR EXTREME EDITION, THIS BOARD DELIVERS THE ULTIMATE PERFORMANCE FOR THOSE SEEKING THE MOST RAW POWER. ENJOY INTENSE, HEART-POUNDING REALISM WHEN PLAYING THE LATEST PC GAMES WITH SMOOTH, EYE-POPPING GRAPHICS ENHANCED BY ATI CROSSFIRE SUPPORT AND CRYSTAL-CLEAR INTEL HIGH DEFINITION AUDIO.
